Sliding Gate Galvanized Steel V Groove Double Bearing Rebate 118mm Wheel With Support Bracket

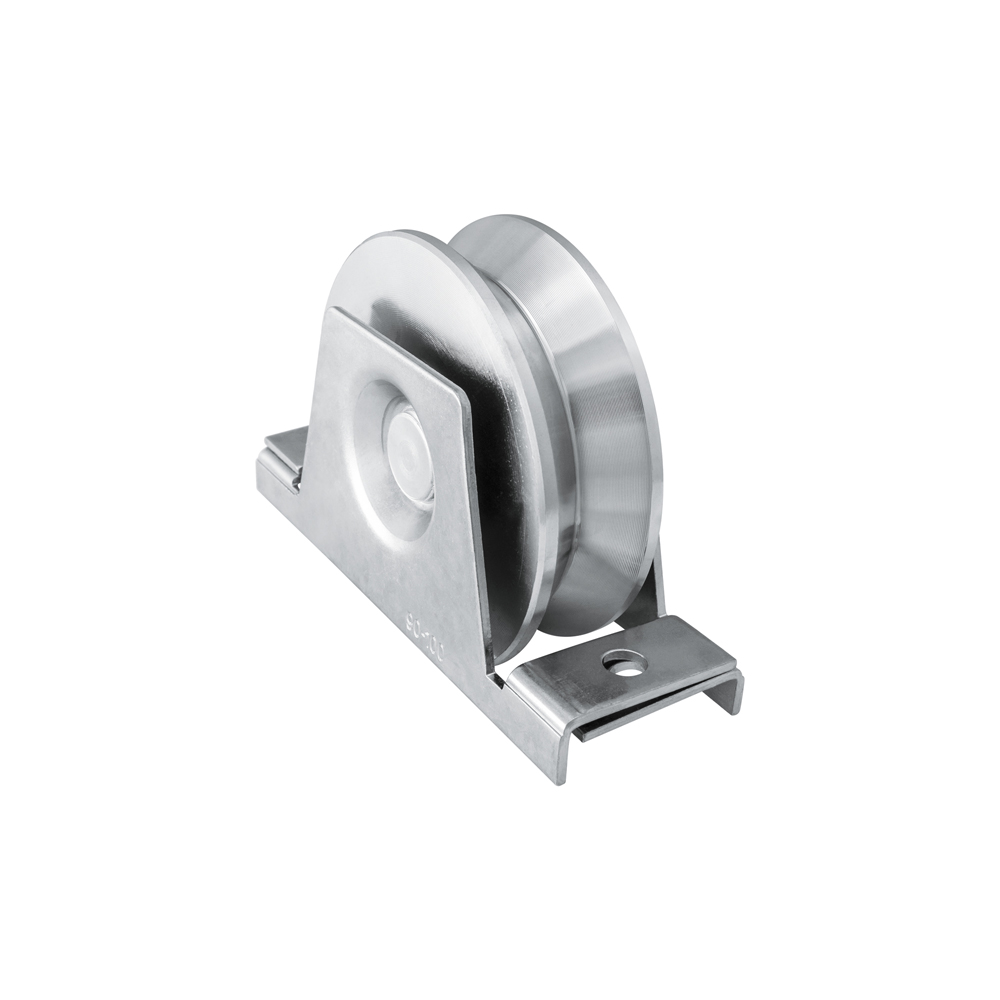

Double bearing 118mm x V-groove galvanized steel wheel with support bracket.

The wheel is fabricated in Italy by HI-MOTIONS from high quality C45 medium carbon steel.

D = 118mm

A = 30mm

B = 45mm

C = 130mm

H = 89mm

L = 190mm

F = 165mm

V groove angle is 92 degrees.

Capacity is 500kg

Travelling distance is 690km.

9mm mounting holes

Item code # 110.120

Image is indicative only.
