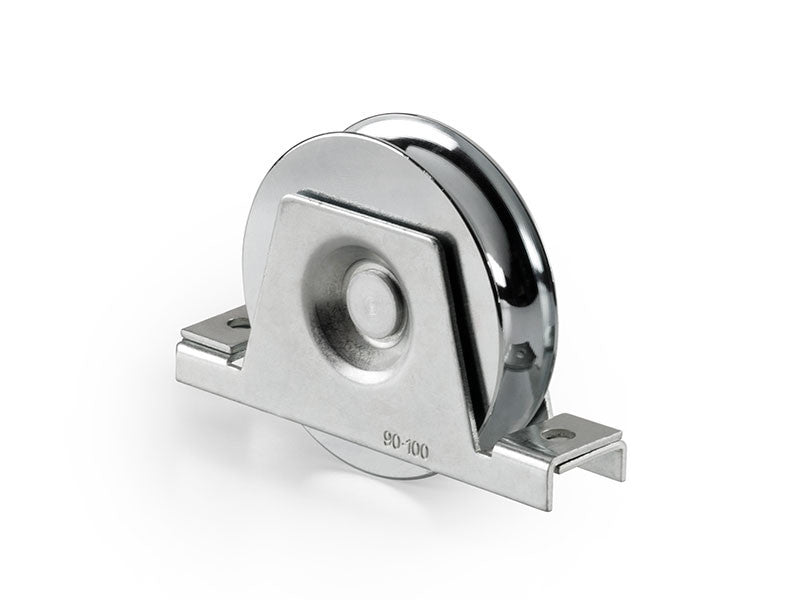

90mm Double Bearing Internal Bracket Sliding Gate Wheel for 20mm U Groove Tracks

Double bearing 90mm x 20mm-U-groove galvanized wheel with support bracket.

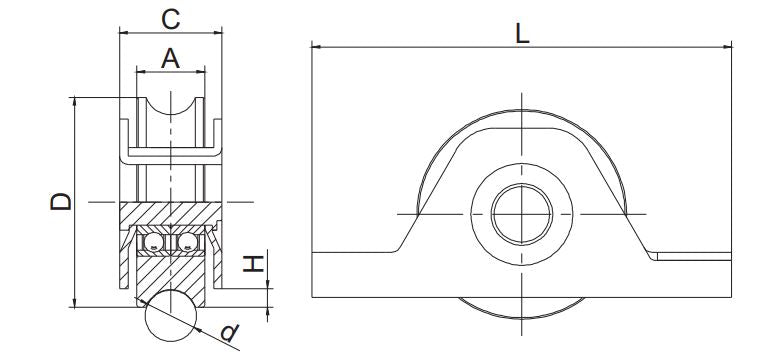

D = 88mm

A = 25mm

C = 33mm

H = 8mm

L = 150mm

Capacity is 500kg

Traveling distance is 560km.

9mm mounting holes

Item code # HD2U90R10

Image is indicative only.
