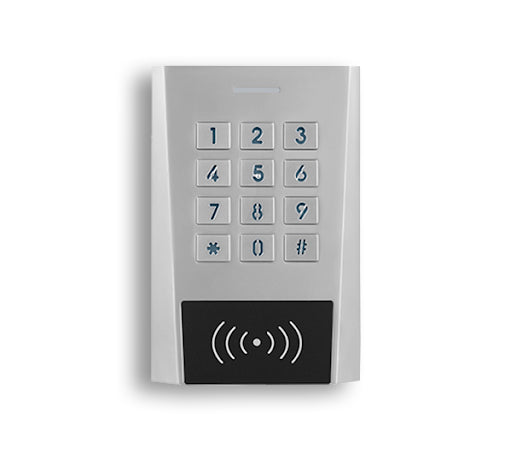

Standalone Access Control Keypad


Or 10 interest free payments from $28.50 with What's this?

Only 6 left!


This is a single door multifunction standalone access controller or a Wiegand output reader. It uses Atmel MCU assuring stable performance. The operation is very user friendly, and low-power circuit makes it long service life.


  • Bluetooth module (optional), to connect mobile for opening doors
  • Fashion design, all metal buttons
  • Metal case, anti vandal
  • Waterproof
  • One relay, keyboard programmer
  • 1000 users, 998 Common users and 2 Panic users
  • PIN length: 4-6 digits
  • EM version - 125KHz EM card, HID and EM version - 125KHz HID and EM cards
  • Wiegand 26~37 bits input and output
  • Can be used as a Wiegand reader with LED and buzzer output
  • Card block enrolment
  • Tri-colour LED status display
  • Integrated alarm and buzzer output
  • Pulse mode, Toggle mode
  • User data can be transfered
  • 2 devices can be interlocked for 2 doors
  • Built in light dependent resistor (LDR) for anti tamper
  • Backlit keypad
  • Low temperature resistance (-40 degrees celsius)
  • Voltage: 12~28V AC/DC

Product code is XK1-EM
