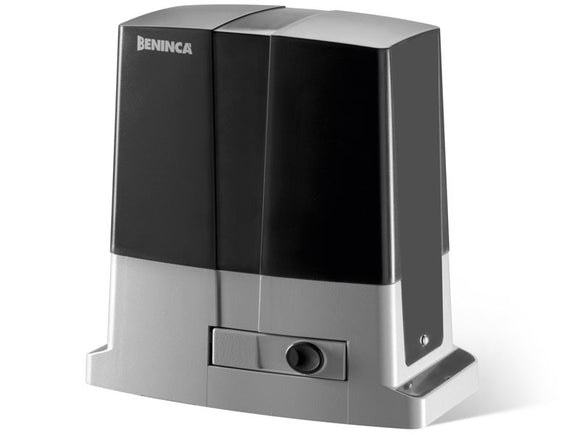

Strong 230v AC motor with integrated controller.
Its application covers residential and light commercial use on gates up to 500 kg.
Italian Design - Quality Italian made motor with an operating speed of 10.5m / min and a duty cycle of 30% makes this motor perfect for residential and light commercial gates with a lower number of operations each day.

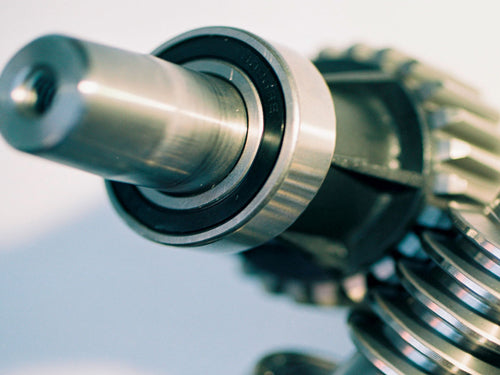

Strong metal construction and performance - All metal gearbox and cog assembly means less wear and tear and a longer service life.
Quick setup function - You can quickly set the motor parameters using the dip switches and a remote. This allows you adjust the torque and slowdown parameters.
Encoder system - The BULL5M motors are equipped with an encoder which enables the best safety and anti-crushing features of this series.

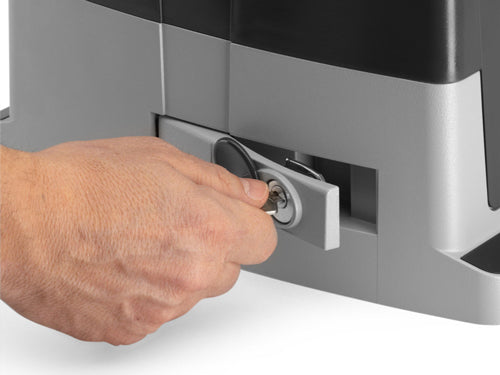

Emergency release - Manual release mechanism fitted for emergency release in the event of power failures.
A built-in radio receiver which allows up to 64 transmitters to be coded
230 Vac 50hz Power Supply

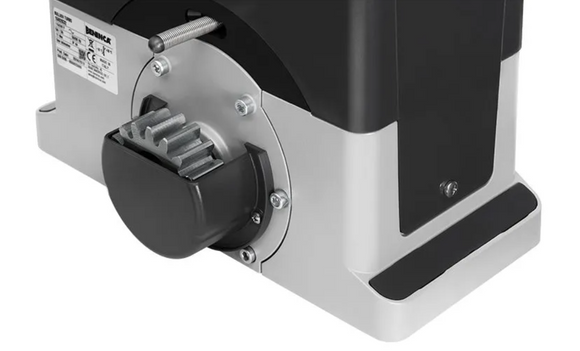

Standard M4 z18 (mod 4) drive rack
Full metal gearbox for increased life span
10.5m / min operating speed and 30% duty cycle
Download specification sheet here.
Please, contact us for more information about BULL5M.
