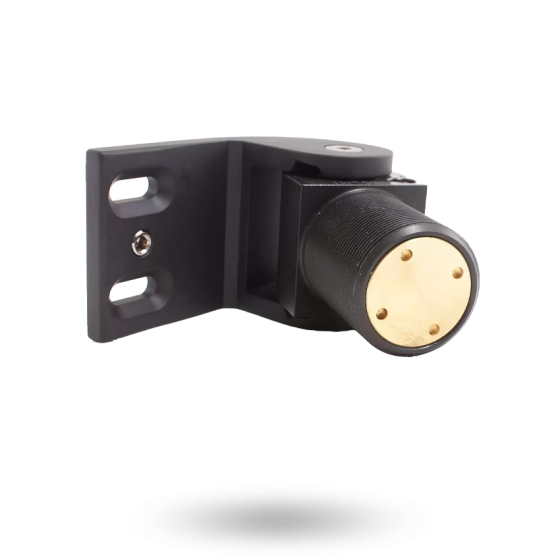

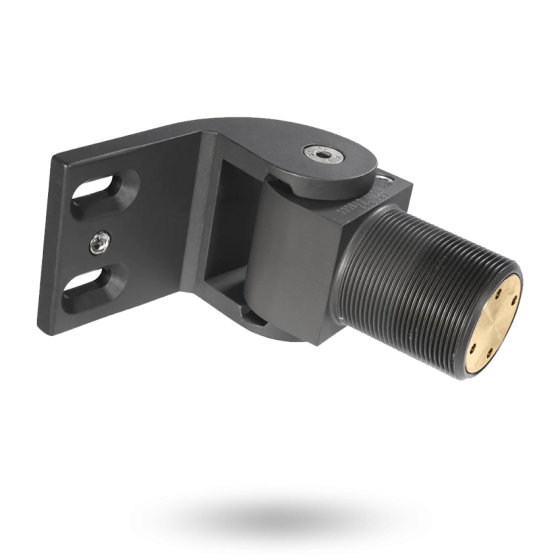

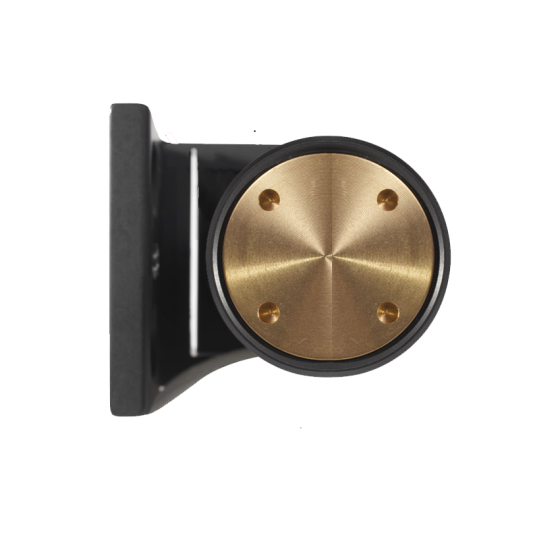

DD TECH SURECLOSE FLUSH MNT HYDRAULIC HINGE CLOSER SCREW-ON 57 AT90

D&D SURECLOSE® Flush Mount Hinges and Hinge Closers

An internally mounted, hydraulic, gate hinge-closer

The hydraulic D&D SureClose® gate closers and hinges are designed to replace conventional, bulky commercial gate hinges and closers. These strong and sturdy hinge-closers provide smooth, bind-free performance. Superb engineering and patented design allow clever concealment of the hydraulics in a remarkably small housing. There is no compromise of quality with these small-footprint D&D SureClose® gate closers and hinges.

The D&D SureClose® 108 and 57 models are concealed hydraulic gate closers. The models feature Final Snap-Close Action (FSA) which increases speed at the end of closing to overcome electric or coded locks. Both ‘Closing Speed’ and ‘Final Snap’ are adjustable using the supplied adjustment tool. Designed to never leak hydraulic fluid, the D&D SureClose® 108 or 57 are extremely safe and do not offer resistance if closed quickly in an emergency. Soft, quiet closure also protects the latching/locking system. D&D SureClose® 108SF and 57SF models are suitable for pool and safety gates. SF models open to and self-close from 90 degrees.

Post mounting brackets sold separately.
Aluminium gate mounting brackets: Pre-drill using 5mm drill bit and use #14 countersunk through-bolts or fasteners. See post brackets for their fastener requirements.


Features

  • Powerful, hidden hydraulics in a compact unit
  • Hinge/closer
  • Flush mounting
  • Maintenance-free

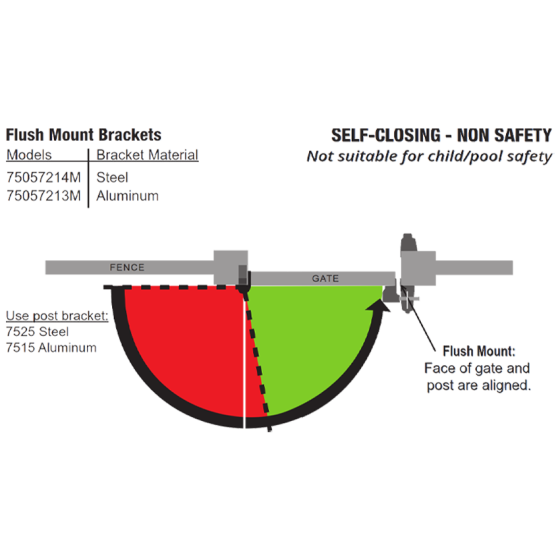

  • Self closing hinge from 85º
  • Will hold gates open at 90°
  • Maximum opening angle 180°
  • Multiple adjustment options
  • Prevents gate slam noise and gate damage
  • High corrosion resistance
  • 50 Micron anodised (Aluminium Components)
  • Supplied in trade pack


Note: All D&D SureClose® hinges and closers come packaged with the gate mounting bracket included.
When installing this hinge to a swimming pool gate always confirm any safety requirements with your local Council or authorities to ensure compliance.


Specifications

  • Gate Application: Pool Gate, Child Safety Gate, Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate, Safety Gate
  • Gate Type: Self-Closing
  • Gate Material: Aluminium, Steel or Ornamental Iron

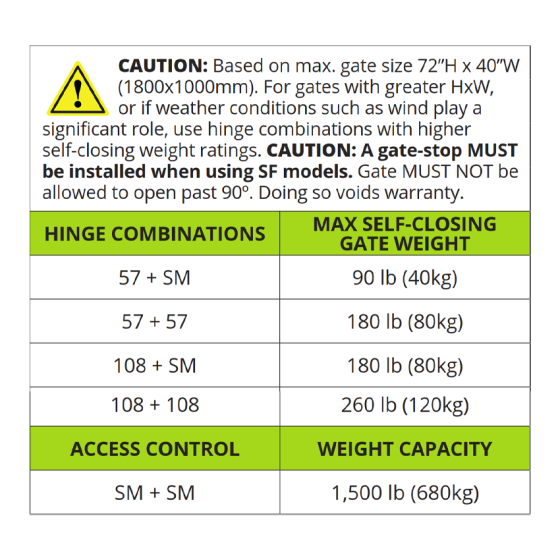

  • Self-Closing Gate Weight: Up to 80kg (180lbs) in combination with hinge (refer chart)
  • Approximate Gate Width: 1200mm
  • Approximate Gate Height 1800mm
  • Gate Frame/Post Shape: Square-to-Square
  • Minimum Post Size: 55mm+
  • Ideal Gate Gap: 13mm
  • Fixing Method: Aluminium Screw-On


Finish
Black Anodised
