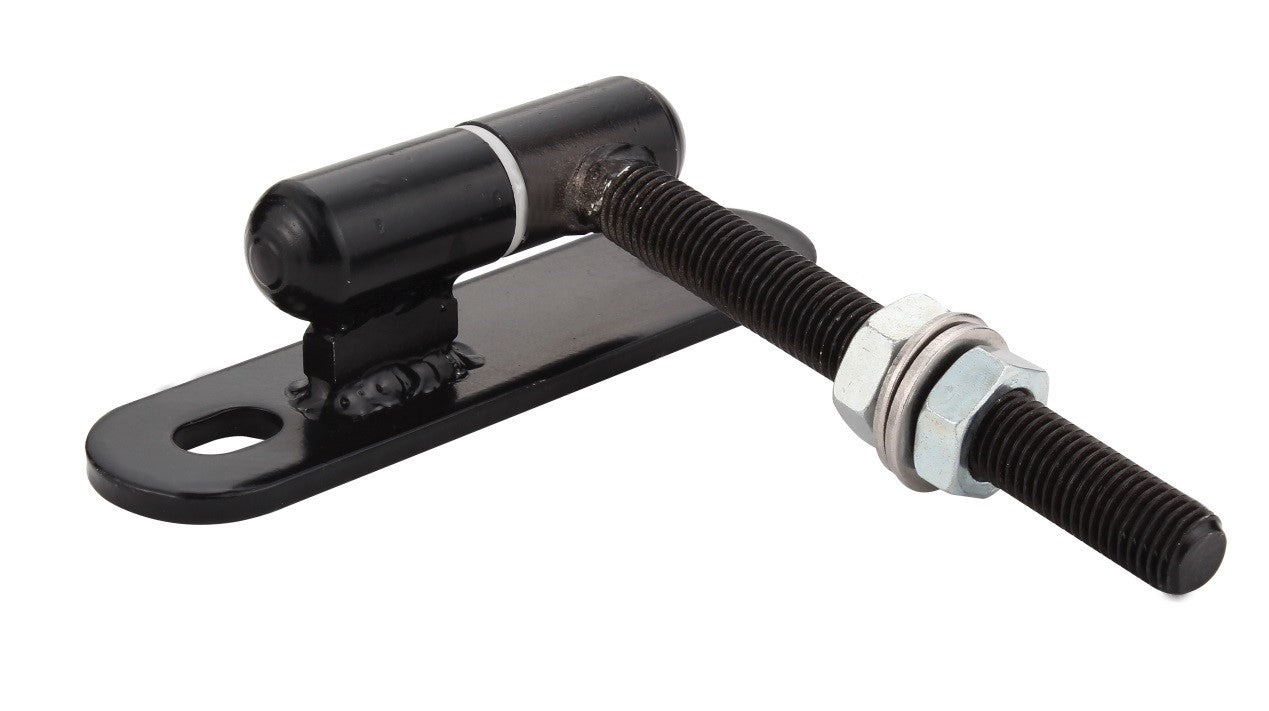

• Adjustable steel hinge powder-coated black.
• Mounting plate size 50mm x 160mm with 2 predrilled holes.
• M16,140mm long pin with 2 nuts and washer.
From back of the base plate up to the center of the hinge is 40mm

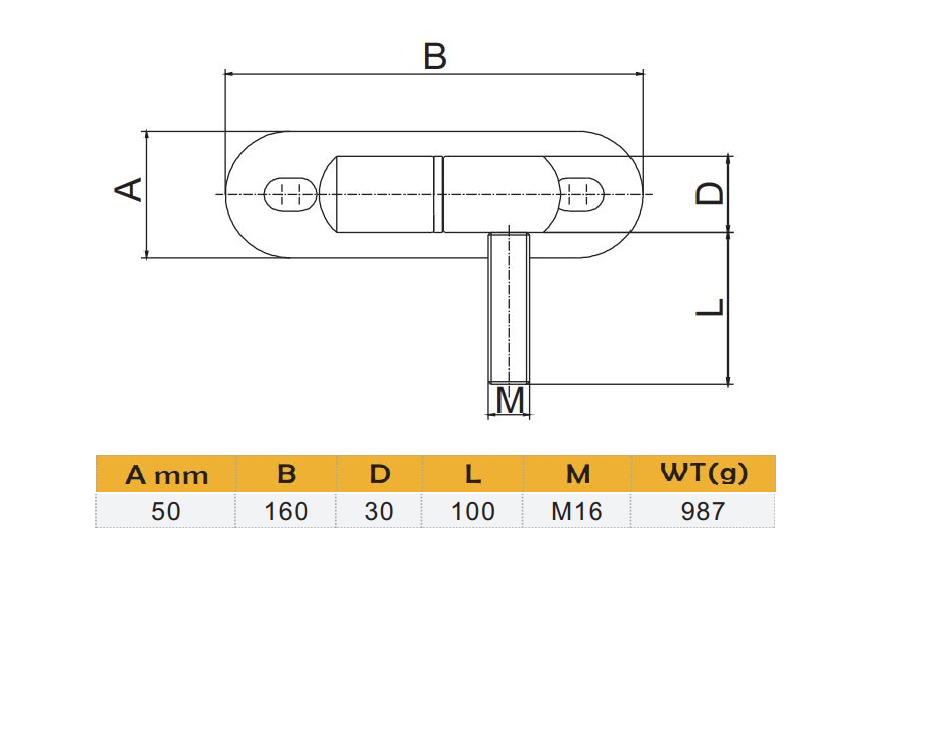

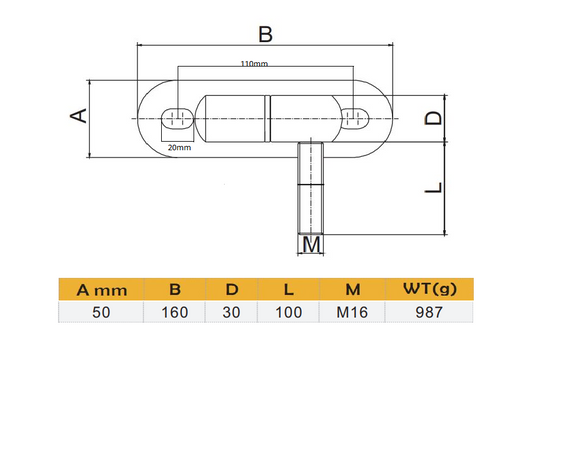

Size : M16 50x60MM
Weight capacity 100KG per hinge.
Product code is JL30B
