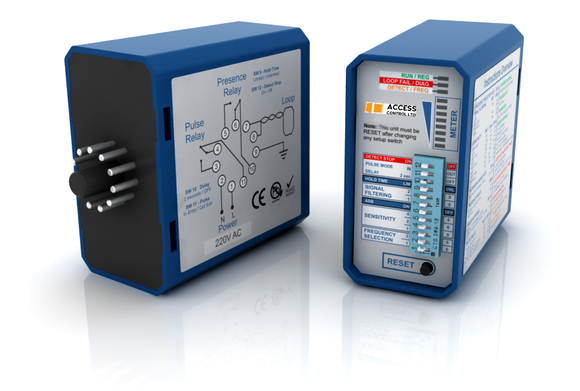

Single Channel Vehicle Loop Detector



Secure
Checkout

1. Fully compatible with most popular 11 pin loop detector of market.

2. Diagnostic capabilities using LED, without external accessories

3. Frequency display using LED to show real frequency working between 50Khz to 200Khz

4. Level Meter using LED to show in real time any detection from loop field.

5. More options like four frequency, eight sensitivity level, four signal filtering.

6. Loop isolation protection for lightning and transient damage.

7. Selectable permanent presence (to eliminate premature barrier / gate closure )

8. High quality components from Germany and Japan for high stability of detection

9. DETECT STOP function allows detection only when a vehicle has come to a complete stop on the loop.



Technical data

- Operating voltages: 12V AC/DC ±5% 24V AC/DC ±5% 110V AC ±10% 220V AC ±10%

- Power consumption: <5W Output:

- Relay output Frequency range: 20kHz to 170kHz (4 grades adjustable)

- Reaction time: 20 ms

- Sensitivity: 10 grades adjustable

- Loop inductance: Ideal 100~300µ H (include connecting wiring)

- Max 50µ H~1000µ H (include connecting wiring)

- Loop conn. Wiring: Max. 100m, twisted at least 20 times per meter, total resistance <10 Ohm

- Operating temp.: -30 to +75degree

- Storage temp.: -40 to +85 degree Relative humidity: ≤ 95%

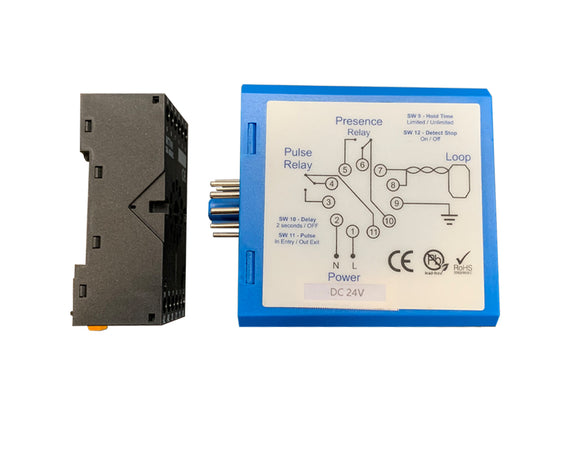

- Connection: 11-pin socket

- Shell: PC + ABS engineering plastics

- Installation: DIN rail

- Dimensions: 110× 60× 100 mm (L× W× H)

- Net Weight: 400g (include socket)
