LW HYDRAULIC DOOR CLOSER SILVER

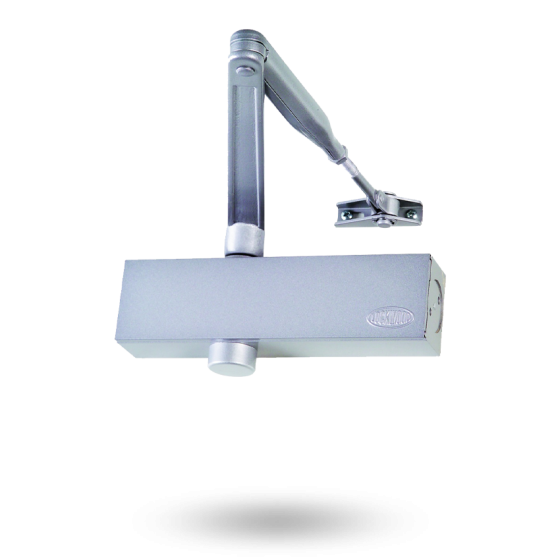

The Lockwood Hydraulic 3024 Door closer

The Lockwood Hydraulic 3024 Door closer is an adjustable door closer suitable for architectural and commercial applications.

With adjustable closing speeds and three mounting options, it can be used with both left and right hand opening doors, both inward and outward opening.

Features

• 2-4 Power Adjustable.
• Non-Hold Open
• Adjustable Backcheck
• Speed Controls
• Overload Protection
• Non-Handed
• Regular, Parallel and Over Door mounting
• Extruded aluminium body with hard anodised coating
• Alloy steel rack and pinion mechanism
• Silicon chrome steel alloy springs
• Forged steel arms
• Fully formed stainless steel box clip on cover
• High grade pinion needle bearings
• Maximum door weight 80kg (power size 4)
• Maximum door leaf width 1100mm (power size 4)

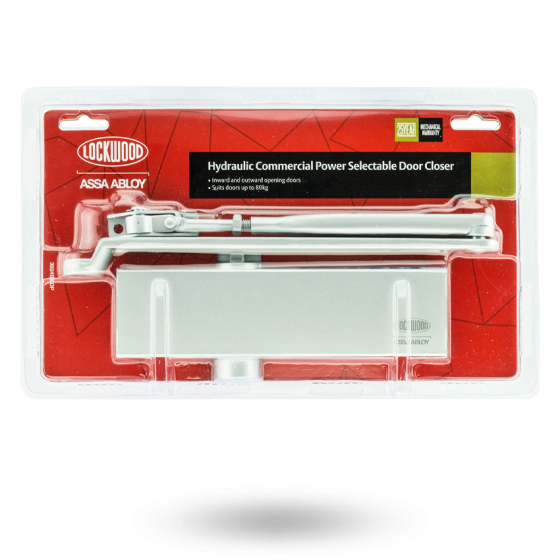

• Supplied in display clam pack

Fire Rated
Tested on fire door assemblies up to 4 hours in accordance with Australian Standard AS 1905.1-1997, Part 1: Fire-resistant doorsets

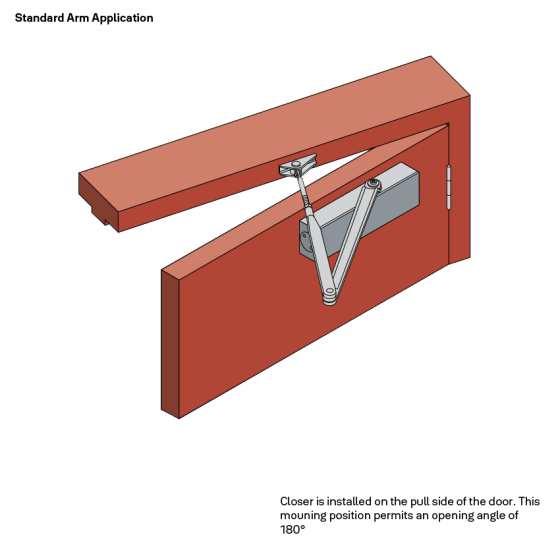

3024 Standard Arm
Closer installed on pull side of door. This mounting position permits opening of 180°.

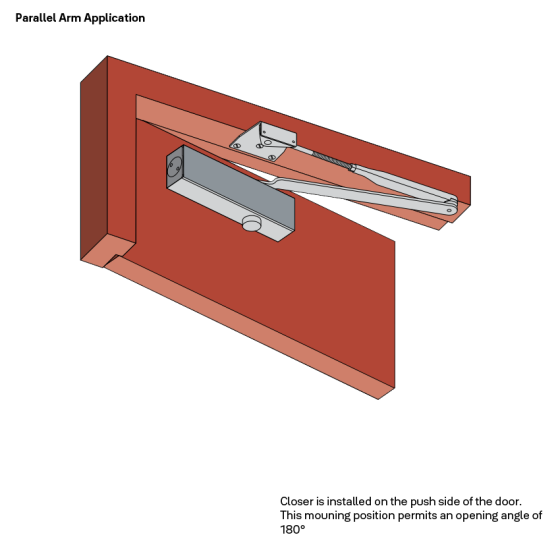

3024 Parallel Arm
Closer installed on push side of door. This mounting position permits opening of 180°.

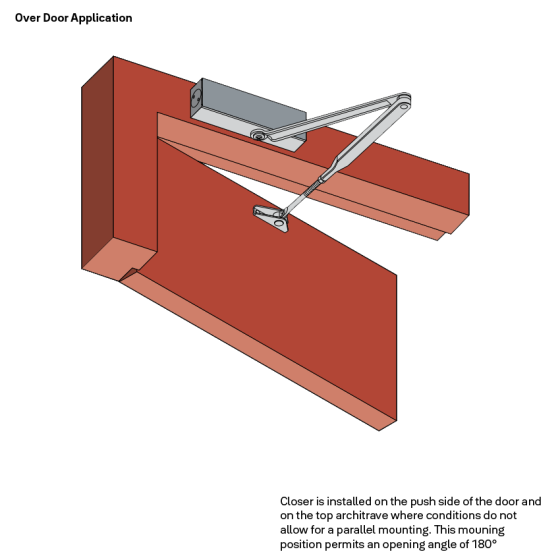

3024 Over Door Mounting
Closer installed on push side of door and top rail where conditions do not allow parallel mounting. This mounting position permits opening of 180°.

Finish
Silver
