2615 CAM ACTION DOOR CLOSER DELAYED ACTION SZ 1-5 SILVER

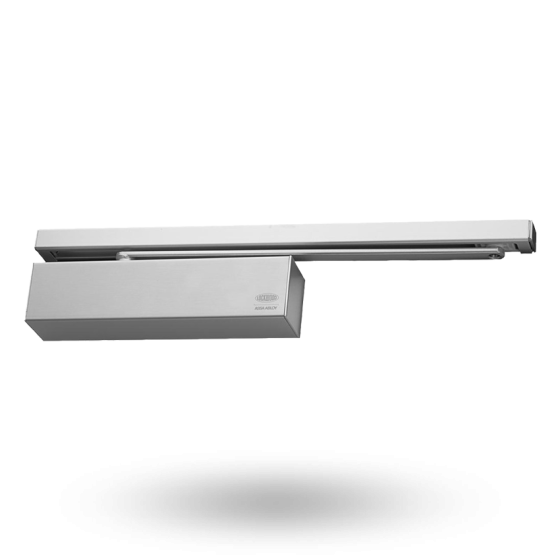

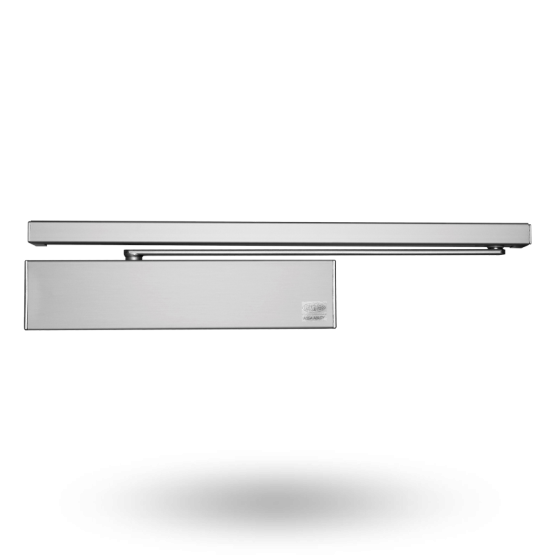

Lockwood 2615 CAM Action Door Closer with Slide Arm

The Lockwood 2615 Series is a non-handed CAM Action Door Closer.Due to the CAM design this premium door closer is light to open but still strong enough to close a door.The Lockwood 2615 Door Closer can be adjusted to meet the requirements of a light door opening resistance and is ideal for both interior and exterior doors.

The Lockwood 2615 is light to open, but its adjustable closing force is high enough for heavy duty applications.For disabled toilet applications where a breakout feature is required, the double action of the mechanism allows the door to be operated in the opposite direction for easy access into the room.One model (2615) covers right hand and left hand applications, pull side/ push side applications and also features an adjustable arm height.

Features

• The 2615 has a very high efficiency of 70% - 80%
• EN adjustable power from 1 to 5
• Back check (BC) is adjustable
• Adjustable hold-open can be set at any angle up to 120° of opening (Hold Open device not include)
• Non-handed.
• Suitable for left or right hand doors.
• Formed metal cover
• Cast aluminium body manufactured from high performance silicon alloy
• CAM action mechanism
• Pull side, push side and over-door mounting
• Two pressure relief valves are a standard feature to protect against abuse
• Adjustable delayed action
• Adjustable closing speed
• Adjustable latching speed

Standards and Compliance
The Lockwood 2616 series closer has been successfully tested up to four hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS1905.1:2005, Part: Fire Resistant Door sets. Note: Hold open option is not approved on any fire door.
Disabled Access Australian Standard (AS1428.1) Design for access and mobility.

Finish
Silver SIL
